Z-60 FE

Articulated Boom Lifts

Z 60 fe 1

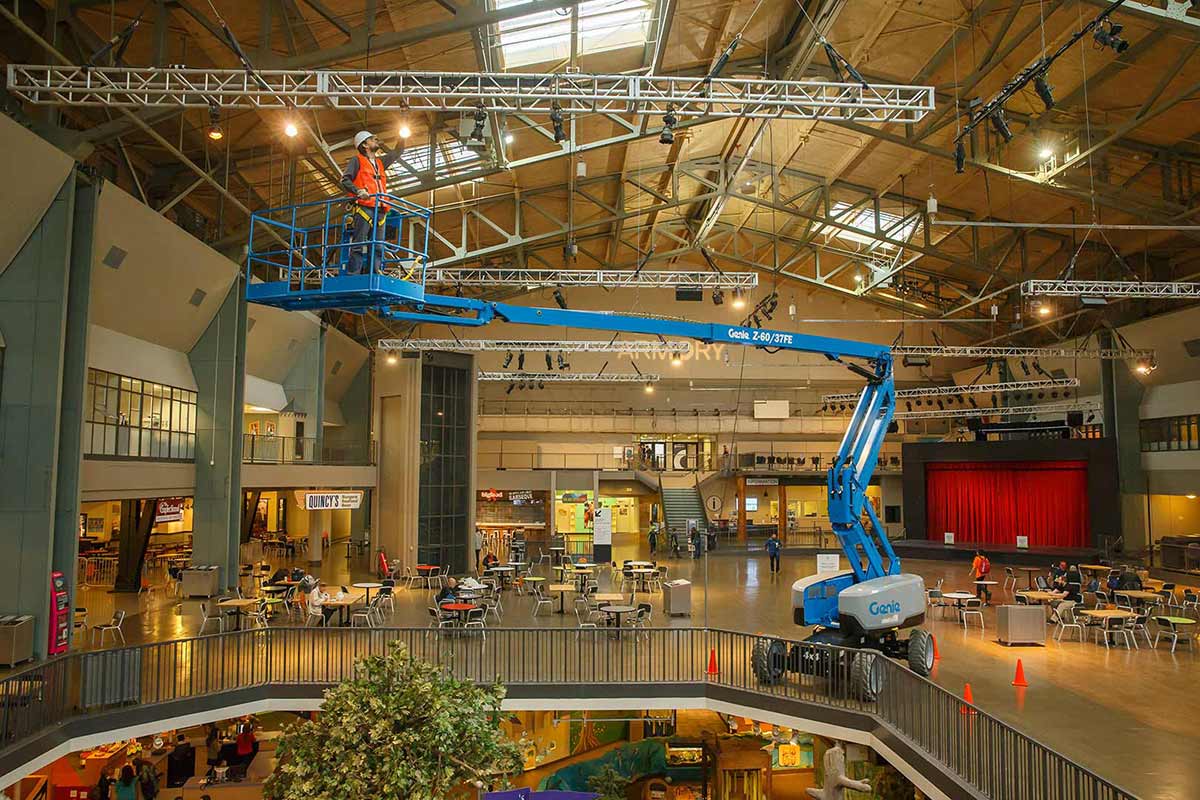

Z-60 FE – Product Overview

The Z-60 FE is two machines in one. The ‘full electric’ mode offers a full-day, emission-free run time on a single charge. The ‘hybrid’ mode offers one week of run time with a single tank of diesel. The ideal, environmentally-friendly solution for increased efficiency and a lower cost of operation.

Overview

  • Full-time active oscillating axle helps maintain traction on rough terrain
  • 4WD and 45% gradeability for superior terrainability
  • High-efficiency AC drive system for enhanced driving performance and simplified maintenance
  • Two modes of operation: all-electric and Hybrid, with outstanding efficiency and jobsite versatility
  • Dual parallelogramme and fully proportional controls for precise boom positioning and smooth performance
  • 1.52 m (5 ft) articulating jib with a 135° range of motion to accurately position workers
  • Fast Mast boom system allows operators to descend and retrieve materials and quickly return to working height

Product Specifications

Max Working Height

20.16m

Platform Capacity

227kg

Height - stowed

2.54m

Length - Stowed

8.15m

Machine Width

2.49m

Weight

7,756kg

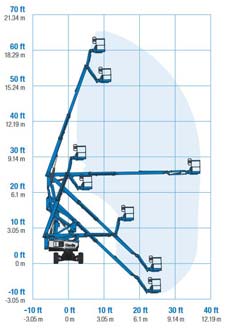

Max Horizontal Reach

11.15m

Max Up and Over Clearance (riser extended)

7.39m
