Z-34/22 DC

Articulated Boom Lifts

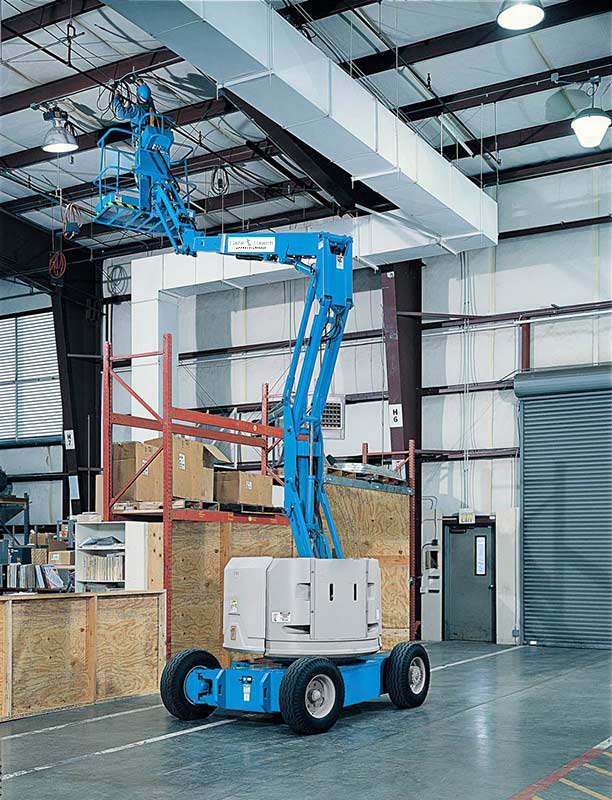

Z 3422 dc main

Z-34/22 DC – Product Overview

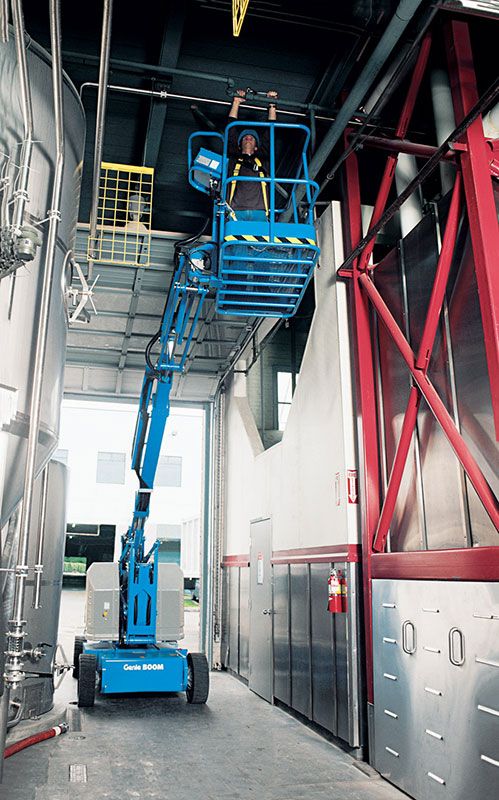

The Z-34/22 DC electric articulating boom lift offers quiet, emission-free operation. With this electric boom lift, operators can easily work close to buildings or around obstacles and access overhead work from aisles and other congested areas.

Overview

  • Zero tailswing and zero front arm swing in stowed and raised positions allow for work in tight spaces
  • Compact chassis for narrow aisle access
  • 30% gradeability and 4 mph (6.4 km/h) travel speed for excellent drive performance
  • 4 ft (1.22 m) articulating jib with a 139° vertical rotation to accurately position workers
  • 180° hydraulic platform rotation and self-levelling platform for easy operation
  • Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability of the drive system

Product Specifications

Length - stowed (tires)

5.64m

Max Working Height

12.52m

Weight (tires)

5,180kg

Platform Capacity

227kg

Height - stowed (tires)

2.00m

Machine Width

1.73m

Product Videos

For further information please contact our experienced team
