GR-26J

Electric Articulated Mast Boom Lifts

Gr 26j 4

GR-26J – Product Overview

The GR-26J lift is a jib machine that offers outreach capability to get virtually any job done, allowing for exceptional range of motion and precise positioning. These capabilities combined with the efficient electric drive motors and a tight inside turning radius make the GR-26J lift the solution for congested, hard-to-reach jobsite applications.

Overview

  • Indoor and outdoor use for increased versatility
  • Compact dimensions to fit through industrial doorways
  • 25% gradeability
  • Narrow inside turning radius
  • Driveable when fully elevated
  • Hydraulic turntable rotation for precise positioning
  • Durable, maintenance-free steel hydraulic mast
  • 140º rotation jib for precise up-and-over access and exceptional range of motion
  • Proportional lift and drive controls
  • Robust steel platform to accommodate up to 2 operators (indoors)

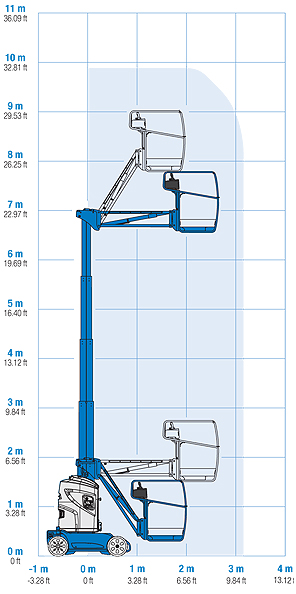

Product Specifications

Max Working Height

9.85m

Platform Capacity

200kg

Stowed Height

1.99m

Length - Stowed

2.82m

Machine Width

0.99m

Weight

2,650kg

For further information please contact our experienced team
