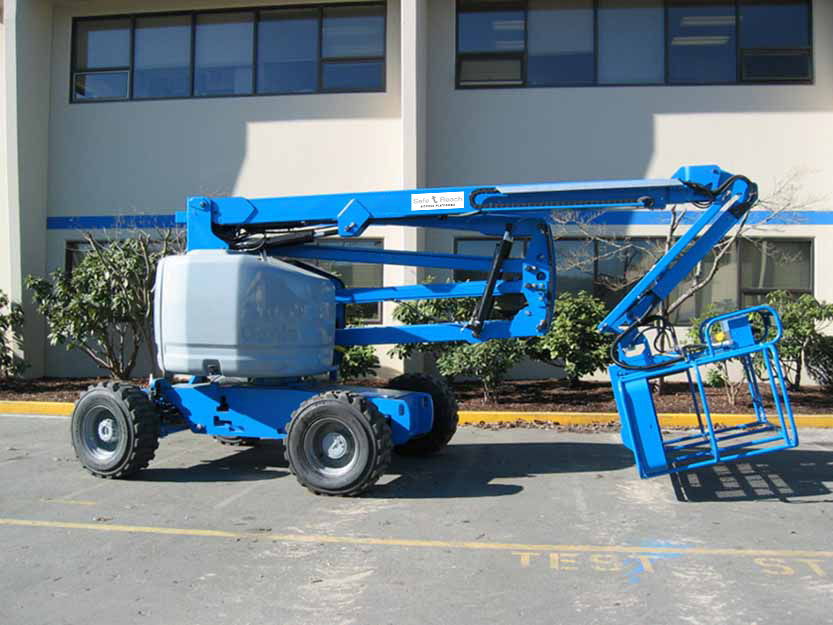

Z-51/30J RT – Product Overview

The  Z-51/30J RT articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none. Ideal for outdoor construction and industrial applications, this model’s tight turning radius and zero tailswing make for easy manoeuvring in confined work areas.

Overview

  • Full-time active oscillating axle helps maintain traction on rough terrain
  • 4WD and 45% gradeability for superior terrainability
  • Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
  • 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
  • 160° hydraulic platform rotation and self-levelling platform for precise platform positioning and easy operation

Product Specifications

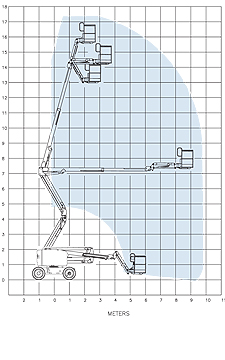

Max Working Height

17.59m

Platform Capacity

227kg

Height - stowed

2.13m

Length - Stowed

7.58m

Machine Width

2.29m

Weight

7,394kg

Max Horizontal Reach

9.37m

Max Up and Over Clearance (riser extended)

7.39m
